Thiết bị đo tốc độ vòng quay FT3405
Wide Range Industrial-Grade Digital Tachometers for Non-Contact and Contact Rotation and Cycle Measurements

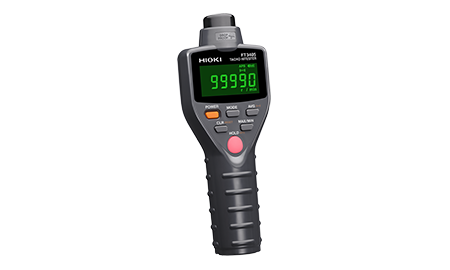

The Hioki FT3405 is portable, contactless digital tachometers that use reflected visible spectrum light to measure the speed of a rotating object to which reflective tape has been affixed. The instruments can also be used as a contact-type tachometer by attaching the Z5003 Contact Adapter.
Key Features
• Convenient analog and pulse output functions
• Non-contact detection distance of 500 mm ensures safety for the user
• Dust-proof construction and drop-proof to 1 meter
• Wide measurement range of 0.5000 r/s (30.00 r/min) to 99990 r/min
• Contact style testing available with optional contact adapter
Chia Sẻ
| FT3405 | ||
| Measurement method | Non-contact: Using red visible-spectrum light and reflective tape Contact: Using optional Contact Adapter |
|
|---|---|---|
| Measurement ranges Non-contact, AVG=ON | Rotation (r/min) : (30.00 to 199.99) to (20000 to 99990) Rotation (r/s) : (0.5000 to 1.9999) to (200.0 to 1600.0) Period (ms) : (0.6000 to 1.9999) to (200.0 to 1999.9) Count : 0 to 999999 |
|
| Measurement ranges Contact, AVG=ON | Rotation (r/min) : (15.00 to 199.99) to (2000 to 19999) Rotation (r/s) : (0.2500 to 1.9999) to (200.0 to 333.00) Period (ms) : (3.000 to 19.999) to (200.0 to 3999.9) Count : 0 to 999999 |
|
| Measurement ranges Contact, AVG=ON | Straight-line speed (meter/min) : (1.500 to 19.999) to (200.0 to 1999.9) Straight-line speed (meter/s) : (0.0250 to 1.9999) to (20.00 to 33.30) *Using with the Peripheral ring 9212 (option) |
|
| Accuracy | Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF) 10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF) 20000 counts or more (r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF) Straight-line speed measurement only: ±0.5 % rdg. add to above-mentioned accuracy |
|
| Non-contact measuring detection range | 50 mm (1.97 inch) to 500 mm (19.7 inch) | |
| Display refresh rate | Approx. 0.5 to 10 times/s | |
| Functions (FT3406 only) | N/A | [Analog output] 0 to 1 V f.s., Accuracy: ±2 % f.s., Output resistance: 1 kΩ [Pulse output] 0 to 3.3 V, Output resistance: 1 kΩ Can use with the AC adapter for power supply |
| Dust and water proof | IP50 (EN60529) | IP50 (EN60529) |
| Common functions | MAX/MIN display, Display hold, Average, Auto power save, Buzzer sound, Drop-proof (1 m distance onto concrete surface) | |
| Power supply | LR6 (AA) alkaline battery ×2, Max. rated consumption 0.5 VA | |
| Operating time | Continuous use 30 hr | Continuous use 25 hr |
| AC power supply | N/A | AC adapter Z1004 |
| Dimensions and mass | 71 mm (2.80 in)W × 186 mm (7.32 in)H × 38 mm (1.50 in)D, 230 g (8.1 oz) (including batteries) | |
| Accessories | Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Carrying case ×1, LR6 (AA) alkaline battery ×2 | Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Output cord 9094 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2 |
